360° CUTTING AND DRILLING MAKE ROVER BITS AN ALL AROUND WINNER!

Combining the “best” qualities of forstner, auger, and spade bits, patented Rover Bits drill vertically and cut horizontally to the 6″ shank. Plus, unlike a forstner bit, Rover bits can be used in hand tools like a drill for amazing free-form drilling versatility. Rover Bits don’t rip up material, leaving a clean, finished flat-bottom hole ready for whatever the application. These bits were made for wood but can also power through plaster, sheet metal, solid surface material and even carbon fiber, an up-and-coming material on everyone’s hot list. That’s what makes the best rover bits you’ll ever own. Please do not use Rover Bits to drill stone or masonry.

BUY IT


WHAT’S EVERYBODY BARKING ABOUT?

Bad Dog Rover Bits do not rip up material, leaving a cleaner hole than the typical bit to save you finish time. That’s what makes them the best rover bits you’ll ever own. Rover Bits work equally as well in soft or hardwood like oak, rosewood, or walnut. But don’t limit the use of your Rover Bits to wood and wood products like composite and particle board! Try them on carbon fiber, solid surface material and sheet aluminum. You’ll find technical details below to help you best use your Rover Bits on each material. Please do NOT use Rover Bits to drill stone or masonry.

Bad Dog Rover Bits are made with a special combination of carbide to resist chipping and breaking so they can even handle the occasional nail! Rover Bits can be used for operations ranging from drilling a simple hole to using its side-cutting capabilities to carve, make free-hand pocket holes, and the signature Quick Mortise™ to install locks in record time with no secondary operations.

UNIQUE FEATURES:

  • Drill Free-Form at ANY ANGLE with your Hand Drill
  • Special Carbide Resists Chipping
  • Quick Change Shank Makes it Easy to Change Out Bits
  • 6″ Shank for Greater Depth of Cut than Forstner Bits
  • Also Use in Lathe or Drill Press
  • Drill MORE than Wood Including Solid Surface, Sheet Metal, Plaster, and Carbon Fiber

DISCOVER ALL YOU CAN DO WITH THE BAD DOG ROVER BITS


What have you done with YOUR Bad Dog Rover Bits? E-mail us at topdog@baddogtools.com
Best submission will be posted on our website & receive a Bad Dog T-Shirt!

LIFETIME GUARANTEE

We will repair or replace damaged or dull Rover Bits.

Please return the Rover Bits, along with $5.00 USD per bit for return shipping and handling.

If sending via USPS:
Mail to PO Box 851
Bristol, RI 02809

If sending via UPS or FEDEX:
Send to 24 Broadcommon Rd
Bristol, RI 02809

NOTE: Weight constraints limit replacement of Rover Bits to mail only. They cannot be replaced at trade shows.

Its all in the Technique

From the chip-resistant carbide edge to the slim 6″ shank for better maneuverability and greater depth of cut, Rover Bits were made for working with wood, plastic, carbon fiber and even more!
ROUND HOLES (A)
Use like a traditional wood bit at any speed up to 2,500 RPM. Where there is a possibility of hitting a nail, increase drilling speed to 2,500 RPM.

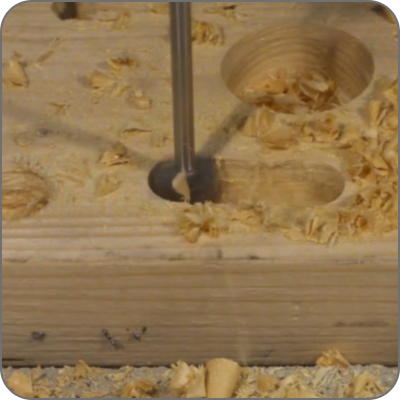

QUICK MORTISE (B)
Install lock sets in record time with no secondary operations. Simply drill a series of overlapping holes to desired width and connect by side cutting with Rover Bits. Drill at any speed. Drill side-cuts at 2,000 RPM.
POCKET HOLES (C) & (D)
The strongest kind of screw joint. Use for building furniture, railing, and other wood projects. Also great for keyholes.
CARVING (E)
Use Rover Bits for rough wood carving or to hog out material for inserts.
ROVING (F)
Cut through material at seemingly impossible angles. Makes running wires or piping a snap. Use Rover Bits to make grooves for installation of wiring under flooring.

DRILLING SPEEDS

MATERIAL
Wood & Wood Composite
Particle Board
Carbon Fiber
Fiberglass
Solid Surface (Corian)
Sheet Aluminum (24g)

RPM
400-2,500
400-1,500
400-1,000
400-1,500
800-1,000
1,800-2,000

SPECIFICATIONS

Power Source : 1/2″ or 3/8″ Electric Hand Drill
Shank : Hex end for non-slip drilling
Minimum RPM : 400
Maximum RPM : 2,500

Note: lower speed allows for more control
