TWO HEADS ARE BETTER THAN ONE WHEN IT COMES TO THIS
DRILL MOUNTED NIBBLER
Is it the sports car of nibblers? Maybe… It’s light. It’s compact. And where other cutting tools cut straight lines or curved lines, the Bad Dog Biter can cut drag-race straight and make track-worth turns with ease. Plus, there are no cords or hoses to get in the way. What you get is a sleek cutting machine that will cut circles around anything else out there. Using PATENTED technology, powered by your hand drill and a pair of patented cutting heads, the Bad Dog Bite Drill Mounted Sheet Material Cutter makes it easy to cut sheet material up to 1/8″ thick. Like one Bad Dog Biter user said, “These puppies cut circles around other nibblers”. We couldn’t have put it better.
DISCOVER ALL YOU CAN DO WITH THE BAD DOG BITER
What have you done with YOUR Bad Dog Biter? E-mail us at firstname.lastname@example.org
Best submission will be posted on our website & receive a Bad Dog T-Shirt!
Available in TWO Cutting Depths!

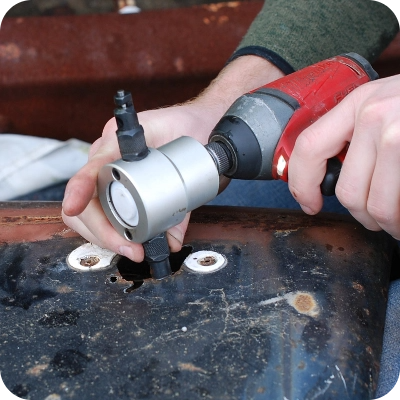

The Original Biter comes with a 2″ cutting head which is perfect for every-day cutting like trimming flashing, removing rusted sheet metal from a fender, fitting laminate, or cutting sheet plastic. For those cuts that are just out of reach, pop on the Long Dog Head. A full 4″ long, the Long Dog makes access easy to hard-to-reach places such as inside a fender to install marker lights, awkward angles on the dash to install gauges or retrofitting ductwork hidden inside a ceiling. The Long Dog features the same 360° turning radius as the original Bad Dog Biter head.
- Two heads for twice the cutting time
- Powered by a Hand Drill – no additional power source needed!

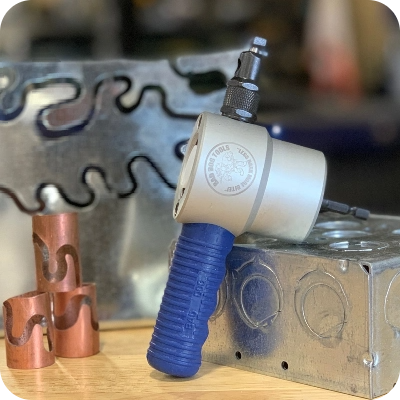

- Light and compact: Fits in just a corner of your toolbox!
- Cutting Heads adjust 360° for easy cutting in any space
- No distortion of material

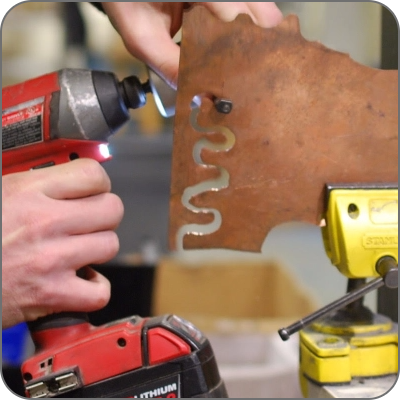

- Follow precise patterns with the Biter’s patented steerable heads
- Cuts corrugated, round, or flat materials up to 1/8″ thick (varies by material)
- Cuts any shape to 1/2″ radius
PAWS for some Important Information:
Non-Ferrous metals contain no iron. Some of these materials are among the most easily mined and figured prominently in ancient history. Though Non-Ferrous metals are much softer than ferrous metal, the can also present their own difficulties to the crafts person. In certain circumstances, heat built up by the cutting tool can actually melt the metal, which in turn, gunks up the blade, rendering it useless. Whether cutting or drilling Non-Ferrous metal, Bad Dog always recommends using a lubricant like Bad Dog Drool.
WATCH THE BAD DOG BITER FEATURED ON TV
CHECK OUT WHAT OTHERS HAVE DONE WITH THE BAD DOG BITER
Our friends at Extreme How-To featured the Bad Dog Biter on the Extreme How-To Blog.
Click on the image above to find out what they had to say!
Zenith Design used the Bad Dog Biter to create these beautiful wall sconces. The lights are 24oz copper sheet and laminated paper inserts. The Biter allowed them to quickly and easily remove the waste from the center panels. After removal, the pieces were templated routed to a final shape with a variable speed router set as low as possible and lubed with Bad Dog Drool. Click on the image to check out more from Zenith Design.
We will repair or replace the body of the Biter.
Please return the body of the biter along with $10.00 USD for return shipping and handling.
If sending via USPS:
Mail to PO Box 851
Bristol, RI 02809
If sending via UPS or FEDEX:
Send to 24 Broadcommon Rd
Bristol, RI 02809
COOL BITER TRICKS
Use the Biter Leash to guide the Bad Dog Biter into cutting perfectly straight lines and/or circles.
The Versa Clamp takes the hand drill out of your hands, turning it into a host of useful tools.
Learn How to Use Your Biter
The BAD DOG BITER has two steerable heads that rotate 360° for maximum versatility. One or both heads can be set to steerable! To get the best performance out of your new tool, please review the instructions.
USING THE BAD DOG BITER
- Bring drill to maximum RPM before cutting material
- Keep speed constant while cutting
- Don’t force Biter to cut faster
SETTING THE STEERABLE HEADS
- One or both heads can be set to steerable
- Turn the screw 1/4 turn using allen wrench provided
- Head should turn freely but still be snug. Lock Tite can be used to secure set screw
- Set heads in opposite direction for max versatility
CHANGING THE BITER BLADE
- 1. Remove metal retaining clip (A).
- 2. Remove the plastic end cap (B).
- 3. Loosen lock nut (C) & remove attached set screw (D) with allen wrench.
- 4. Insert new blade (E) with indentation facing up while gently pushing old blade through and out.
- 5. Align indentation in center of blade block (F).
- 6. Replace set screw (D) into indentation in new blade..
- 7. Re-tighten lock nut (C)
- 8. Grease
- 9. Replace end cap (B) & retaining clip (A).
Power Source: Hand Drill
Speed : 1,200 – 4,500
Cut Width (all materials) : 1/8″
Mild Steel* : 14 gauge
Stainless Steel* : 18 gauge
Brass/Copper/Aluminum : 14 gauge
Plastic & Fiberglass : 3/32″
Laminate & Veneer : 3/32″
*use on flat or corrugated stock/cutting oil is recommended for maximum blade life
Minimum cutting speed 2,000RPM
THE BITER LEASH
The Biter Leash trains your Bad Dog Biter to CUT A STRAIGHT LINE or TURN ON A DIME!
ASSEMBLING THE LEASH
Install the threaded head onto your Bad Dog Biter
Place the holder over the threaded head
Tighten the large nut so the head cannot move
Place the pivot point on the leash
Using the set screw, set the leash to the proper width
Tighten the nut under the set screw
The notched side of the holder must be situated opposite to the cutting opening on the threaded head for the head to set properly
TURNING ON A DIME
- Make a small divot to anchor the pivot point
- Set pivot point to the desired radius along the leash from 1″ to 6″ (this gives you the ability to cut perfect circles with diameters of 2″ to 12″)
CUT A STRAIGHT LINE
- Adjust the pivot along the leash to access the straight edge you will use as your guide
- Tighten the set screw and adjacent washer
- Run the pivot along the straight edge
The Versa-Clamp takes your hand drill out of your hands, turning it into a powerful driver for a host of useful tools. Pair the Versa-Clamp with the Bad Dog Biter or Handi Disc Flexible Abrasive Wheel (both sold separately). Also compatible with drill mounted apparatus like grinding stones, wire wheels, flappers discs, or sanding discs. NOT for use with tools that require guards or shields.
VERSA CLAMP PARTS LIST
- A. Double Collar Clamp A
- B. Double Collar Clamp B
- C. Platform
- D. Allen Screw
- E. Swivel Ball
- F. Swivel
- G. “C” Clamp
- Loosen Allen Screw (E) to interchange Double Collar Clamp unit
- Be sure “C” clamp (G) is securely tightened to work surface
The double collar clamp and the Bad Dog Biter can be used independent of the table mount for freehand work.
*Note: The double collar clamp must be securely fastened around the body of the drill, not the chuck.
Mount the Versa Clamp under the work surface and turn 90 degrees.
Use fence for perfectly straight cuts.
VICE CLAMP ATTACHMENT
Soft rubber jaws protect delicate material and offer maximum holding power. Use the swivel ball to pivot the material to any angle. The Vise Clamp can be attached to the table so the “C” clamp (G) can be used to hold the material on the same plane as the work surface.
